Introduction

In modern construction, home appliances, and transportation industries, prepainted steel coil products (commonly known as PPGI or PPGL) have become a star material favored for their excellent corrosion resistance, superior formability, and aesthetic versatility. However, with an overwhelming variety of substrates, coatings, and specifications on the market, how can buyers select the most cost-effective steel coils that meet strict engineering standards?

This comprehensive guide breaks down the production process, technical parameters, supplier vetting criteria, and market trends to empower your purchasing decisions.

Core Stage: The Production Process

High-quality prepainted steel coil products are far more than just “painted” steel sheets. They are manufactured on highly automated, continuous production lines to ensure every prepainted steel coil meets international standards through a rigorous multi-stage process:

1. Uncoiling & Splicing: The substrate coil (Galvanized or Galvalume steel) is fed into the entry accumulator to ensure continuous, non-stop line operation.
2. Degreasing & Cleaning: Chemical agents and water sprays thoroughly wash the substrate to remove residual oils, dust, and oxide scales.
3. Chemical Conversion (Passivation): A chemical conversion coating is applied to the substrate surface, creating a tight bond that drastically enhances paint adhesion.
4. Prime Coating: The first layer (primer) is applied to both sides and baked in a high-temperature oven to cure.

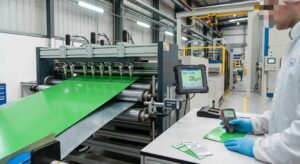

5. Finish Coating: The top coat (face paint) and back coat are applied, followed by a second pass through the curing ovens to lock in a durable, uniform finish.
6. Cooling & Recoiling: After cooling via air or water, the prepainted steel coil is wound back into rolls, inspected for quality, and prepared for packaging.





Technical Specifications

Before placing an order, it is essential to understand the detailed technical parameters for each prepainted steel coil order:

Figure 1: Premium prepainted steel coil rolls lined up in the factory warehouse

Core Advantages

Why are prepainted steel sheets rapidly replacing traditional materials? Investing in a high-standard prepainted steel coil offers several unique benefits:

• Superior Corrosion Resistance: The “metallic coating + chemical conversion film + primer + top coat” multi-layer protective system provides rust protection several times greater than raw steel sheets.
• Excellent Formability: The specialized paint coatings possess high flexibility, meaning they won’t crack, peel, or chip during roll-forming, stamping, or bending.
• Aesthetic Diversity: With virtually limitless color options (RAL system) and surface textures, they easily match any architectural or design vision.
• Eco-Friendly & Cost-Effective: Factory-applied coating processes eliminate the need for on-site painting, drastically cutting down on labor costs and local pollution.

Sub-Category Comparison: Paint Coatings

Application Fields

1. Construction & Building Materials

This is the largest consuming sector of prepainted steel coil manufacturing. It is heavily utilized for roofing sheets (corrugated or trapezoidal profiles), wall cladding, rolling shutter doors, fireproof doors, and indoor ceiling grids.

2. Home Appliance Industry

Often referred to as “Appliance Steel” (PCM/VCM), these highly refined sheets are used to manufacture refrigerator panels, washing machine casings, and air conditioner outdoor unit housings.

3. Transportation & Light Industry

In transportation, the prepainted steel coil is ideal for shipping container linings, truck body panels, and marine partitions. It is also used in light industry to fabricate electrical cabinets and signage.

Warehousing, Transportation, and Export Packaging Standards

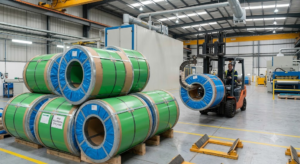

• Packaging Standards: We utilize heavy-duty seaworthy export packaging. The coil is wrapped in anti-moisture paper and plastic film, secured with steel inner/outer protective sleeves, and bound with at least 4 steel straps.
• Handling & Transit: Coils must be lifted using specialized nylon slings or rubber-padded C-hooks. During transit, trucks must cover the cargo with waterproof tarpaulins to protect against rain and sea spray.
• Storage Environment: Coils must be stored in dry, well-ventilated indoor warehouses. Keep coils off the ground by placing them on wooden skids or rubber saddles.



•

Factory Selection & Buyer’s Guide

① Quality Assurance & Certifications

An elite prepainted steel coil manufacturer should operate under a certified quality management system. Always verify if the factory holds an ISO9001 certification and can manufacture according to international standards (ASTM, EN, JIS, or GB).

② How to Avoid Common Purchasing Pitfalls

Beware of “Under-Spec” Coils: Some unreliable suppliers might use a thinner zinc coating than ordered. Always write exact substrate zinc weight and paint thickness specifications into the purchase contract to guarantee your prepainted steel coil order is accurate.

③ Key Price Drivers

The market price of a prepainted steel coil is primarily determined by base steel prices, coating type and thickness, and custom processing (specialized embossed textures or protective films).

Global Market Trends

Regional Sourcing Behaviors and Import Policies

Southeast Asia & Africa: Driven by massive infrastructure and cost-conscious markets, these regions predominantly import PE-coated steel coils. Buyers here should carefully navigate regional import certifications, such as Indonesia’s SNI or Malaysia’s SIRIM.

Europe, North America, & the Middle East: High UV radiation and stringent environmental laws drive the demand for HDP and PVDF high-durability coatings. Buyers must also stay updated on anti-dumping and countervailing duty (AD/CVD) policies.

FAQ: Frequently Asked Questions

Q1: Is a Galvanized (PPGI) or Galvalume (PPGL) substrate better for prepainted coils?
A: Generally, under the same paint coating, a Galvalume substrate (PPGL) offers 3 to 6 times the corrosion resistance of a Galvanized substrate (PPGI) in outdoor environments. However, PPGI is often preferred for deep-drawing due to its superior ductility.

Q2: How can I verify that the paint thickness meets specifications?
A: You can easily perform on-site spot checks using a portable magnetic coating thickness gauge.
