SMP coated steel coil is a practical choice when a project needs a harder, more weather-resistant paint surface than ordinary polyester but does not require the premium performance or cost of PVDF. SMP means silicone modified polyester. The silicone modification improves hardness, gloss retention, chalk resistance, and outdoor durability while keeping the coil suitable for roofing, wall panels, doors, and general building components.
What is SMP coated steel coil?

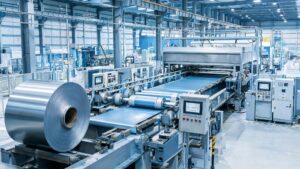

SMP coated steel coil is a continuous prepainted steel product. A metallic-coated steel substrate is cleaned, chemically treated, primed, and finished with a silicone-modified polyester topcoat. The coil coating line controls paint weight, oven temperature, line speed, color, and surface appearance. After curing, the wide strip is recoiled and later cut or roll formed by the customer.
1. Start with the substrate
The paint system cannot compensate for an unsuitable substrate. Confirm whether the base is hot-dip galvanized steel, galvalume steel, or another metallic-coated product. Specify the coating mass, grade, yield strength, tensile strength, thickness, and width. For formed roofing, the substrate must also have enough ductility for the required profile and bend radius.
2. Define the silicone-modified polyester system
SMP is not one universal formula. Suppliers may offer different resin percentages, primer systems, film thicknesses, and durability classes. The order should state the topcoat type, nominal dry film thickness, back-coat requirement, primer, color standard, and gloss range. If the project has a warranty, the coating system and test methods must be agreed before production.
3. Match performance to exposure

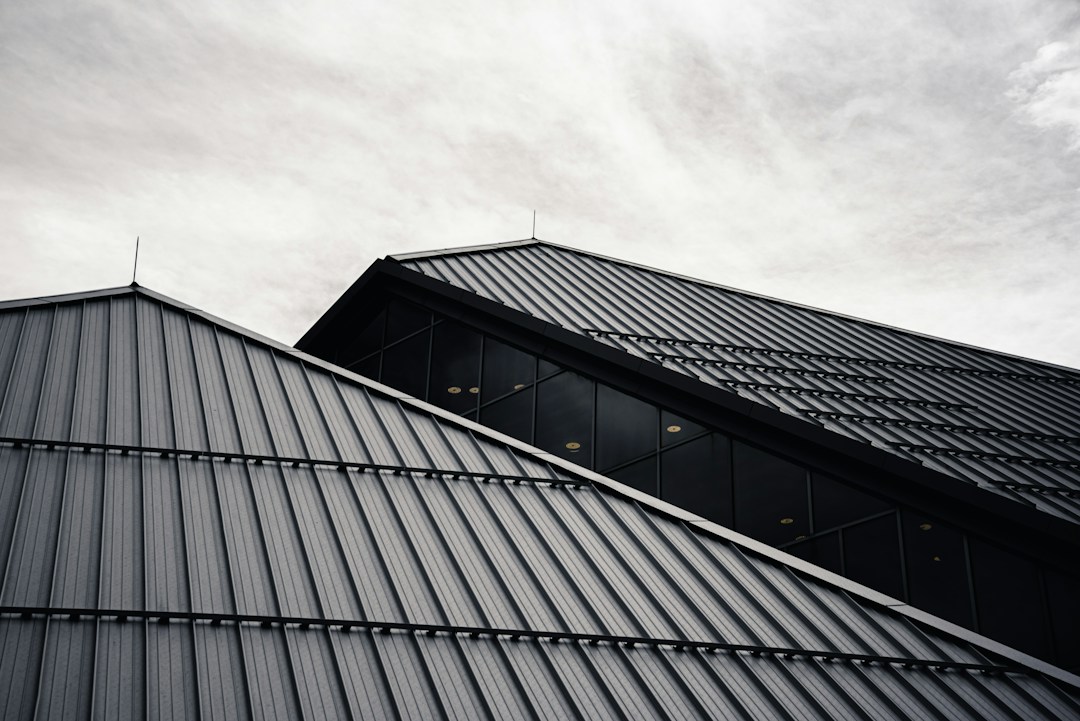

SMP coated steel coil works well in many residential, commercial, and industrial applications. It is commonly selected for roof panels, wall cladding, garage doors, agricultural buildings, and equipment enclosures. For severe coastal exposure, heavy pollution, or a long architectural warranty, compare SMP with HDP or PVDF. The right choice depends on UV intensity, humidity, salt, pollutants, cleaning chemicals, and expected service life.
4. Check color and gloss control
Color is affected by resin, pigment, film thickness, curing, and viewing angle. Ask for an approved color card or a physical master panel rather than relying only on a digital screen. Define acceptable color difference, gloss range, side-to-side variation, and whether small batch variation is allowed. Store reference panels away from sunlight and moisture so future deliveries can be compared fairly.
5. Verify forming and fabrication limits
Paint can crack or lose adhesion if the coil is formed beyond its capability. Confirm minimum inside bend radius, forming direction, roll-forming speed, tooling condition, and whether cut edges require touch-up. The supplier should provide forming guidance for the selected substrate, thickness, paint thickness, and temperature. A coating that passes laboratory tests may still fail if the profile design creates excessive strain.
6. Review adhesion, hardness, and flexibility tests
Typical qualification includes cross-hatch adhesion, pencil or impact hardness, reverse impact, bend performance, and resistance to water or humidity. Test results should identify the substrate, coating thickness, curing condition, and test standard. Do not accept a certificate that reports only a pass without sample details. For a new supplier, request a sample panel and run a forming trial before approving a large order.
7. Control the back coat and protected side
The back coat is important for interior corrosion protection, insulation bonding, and handling. State the back-coat color, resin type, nominal thickness, and compatibility with adhesive, foam, or lamination. If the customer will expose the reverse side, a stronger system may be required. Protect the painted surface with a removable film only when the forming and storage process supports safe film removal.
8. Specify coil dimensions and packaging
Define thickness, width, inner diameter, outer diameter, maximum coil weight, and winding direction. Packaging should include edge guards, suitable straps, moisture-resistant wrapping, and clear labels. SMP coated steel coil must be kept dry during transport and storage. Condensation trapped between laps can cause staining, blistering, or corrosion. Store coils indoors, off the floor, and away from chemicals.
9. Ask for traceability and inspection records
Every coil should be linked to a production lot, substrate heat, coating batch, color, dimensions, and inspection report. The report should cover surface appearance, film thickness, adhesion, gloss or color, mechanical properties, and packaging condition. Traceability makes warranty evaluation and root-cause analysis much faster when a field complaint occurs.
10. Put acceptance criteria in the purchase order
A strong purchase order names the standard, substrate, coating system, color, gloss, dimensions, tolerances, forming requirements, tests, packaging, documents, and claim process. Include approved samples and inspection frequency. Avoid vague language such as “high quality coating.” Clear acceptance criteria reduce disputes and help the manufacturer quote the correct system.
SMP coated steel coil buyer checklist
| Area | Confirm before production |
|---|---|
| Substrate | Grade, metallic coating, strength, thickness and width |
| Paint | SMP resin system, film thickness, color and gloss |
| Performance | Adhesion, hardness, bend, impact and exposure requirements |
| Fabrication | Minimum bend radius, roll-forming speed and cut-edge treatment |
| Logistics | Coil size, weight, wrapping, labels and dry storage |
FAQ
Is SMP better than ordinary polyester?
SMP generally offers better hardness, gloss retention, and outdoor durability than standard polyester. The performance depends on the actual formulation and test requirements.
Is SMP suitable for coastal buildings?
It can be suitable for moderate exposure, but severe marine environments should be evaluated against HDP, PVDF, substrate coating mass, edge protection, and the project warranty.
Can SMP coated steel coil be roll formed?
Yes, when the substrate, coating thickness, bend radius, tooling, and forming speed are matched to the supplier’s technical guidance.
For related product selection, see our color coated steel coil specifications and prepainted galvalume coil guide. ASTM A755 is also a useful reference for steel sheet products with metallic coatings and coil coatings.
